Item # 6439

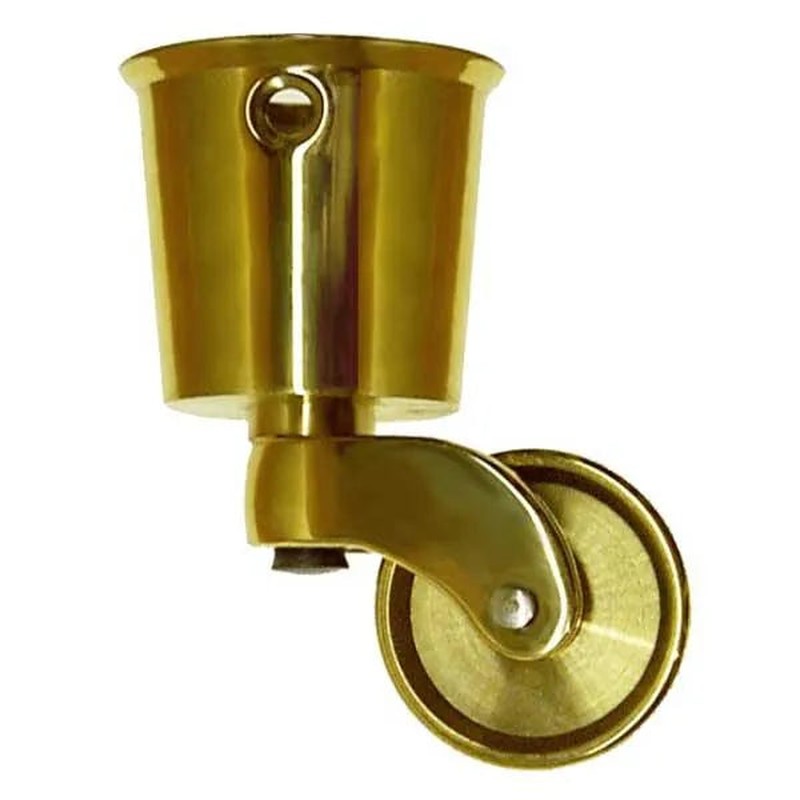

Round Cup Caster, 1-1/4 inch Wheel

Round Cup Casters fit on base furniture legs to add mobility and style. Available in three sizes. These quality casters have  a 1-1/4" diameter wheel.  Reproduced in solid brass, like the originals, with a sleek polished finish. Used on many periods of furniture; as the workmanship and appearance stands the test of time. Wheels swivel independently of leg cup adding easy positioning of furniture.

If replacing lost, damaged or broken casters: all casters on a piece of furniture should be uniform in height, style and appearance to insure proper function.

Additional Sizes:

Round Cup Casters with 3/4" Wheels

Round Cup Casters with 1" Wheels



  • Sold individually
  • Mounting screws included
  • Material: Brass
  • Finish: Polished, not lacquered
  • Caster
  • Wheel Diameter 1-1/4"
  • Raises Furniture: 1-1/2"
  • Load Capacity 100 Lb per caster

  • Compare leg-size to actual caster-cup measurements. If leg-size differs from cup measurement; furniture-leg will need to be altered to fit in cup.

    Interior Cup Measurements:
  • Top 1-1/4"
  • Bottom 1"
  • Depth of Cup: 1-1/8"

  • Once installed leg should fit snugly into round-cup. Furniture-legs may need modification if leg-size differs from cup-measurements.

    Our casters are quality reproductions, strong, well made and designed specifically for furniture. They are very serviceable under normal conditions. As with all antique casters they are made for occasional rolling. Industry testing has not been done on most reproduction casters as a result load bearing capacity is not available.

    These solid brass casters are constructed to support and move furniture. They are strong and dependable. When replacing or adding casters: proper fitting and mobility are the key considerations.

    • There is a direct correlation between caster strength and correct installation. Caster Cup must fit snugly on furniture leg, with as little play as possible. Leg may require modification to accommodate cup. Once correctly fitted, attach cup with wood screws.
    • The larger the wheel, the easier the caster rolls and the less likely it is to hitch or indent the floor.

    Cup Casters are sized with interior cup measurements as furniture legs must fit snuggly. Shape of cup tapers therefore top and bottom measurements are provided.

    • Inside Cup Top: the top interior diameter of the cup less the brass wall.
    • Inside Cup Bottom: the top interior diameter of the cup less the brass wall.
    • Inside Depth of Cup: the interior height of the cup.
    • Wheel Diameter is simply the diameter of the wheel.

    Raises Furniture: height furniture will be raised above the floor

    Cup Caster Measurements

    Square Cup Caster Install
    Load Capacity:

    Caster's overall strength is affected by size of complete caster, material caster is made of, wheel size including diameter and width and correct installation.

    Mobility has an affect on load capacities. Casters are made for occasional rolling. When stationary less stress is place on caster then when moving. The larger the wheel the easier the caster rolls.

    Generally speaking larger casters support more weight and roll easier.

    Equation for estimating load capacity: add furniture weight + furniture load divided by the number of casters needed equals the weight individual casters must support.

    If load capacity is provided it is prudent to use heavier load capacity then needed.
