Item # 4174

Wrap Around Hinge

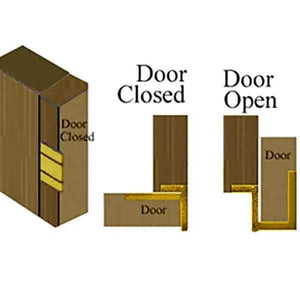

Wrap-around hinges enable door to swing 270 degrees. This wide radius permits door to swing out of the way, to side of cabinet. Interior of cabinet becomes more accessible than with doors opening on traditional hinges. Great for entertainment centers.Extruded brass with a polished finish.

For full overlay doors: 5/8"- 7/8" thick.
  • L shaped hinge leaf wraps around door, attaching to door back. Wrap around shape provides added support to door.
  • Mortise hinge leaf which attaches to cabinet carcass.
  • Priced and sold per pair
  • One pair equals two hinges
  • Use one pair to hang average cabinet door
  • Cabinet Plate: 3 screw holes
  • Material: Extruded Brass
  • Finish: Polished
  • For full overlay doors, 5/8"- 7/8" thick.
  • 11/16" Wide x 1-9/16" High
  • Inside Depth : 7/16"
  • Door plate: 2 screw holes
  • 1-9/16" Wide x 3/4" High
  • Inside Depth: 3/4"
  • Using Brass Wood Screws

    Care is required when installing brass screws. While these screws are the best match for most antique hardware however they are not as strong as steel screws. The screw is easily damaged if the hole is not properly prepared.

    The best practice is to first drill a pilot hole. Use a drill bit slightly smaller than the overall width of the screw, including threads, to drill the hole. Then use a steel screw, the same size as brass screw, to “cut threads” in pilot hole, by screwing steel screw into and then out of hole.
