Item # 4749

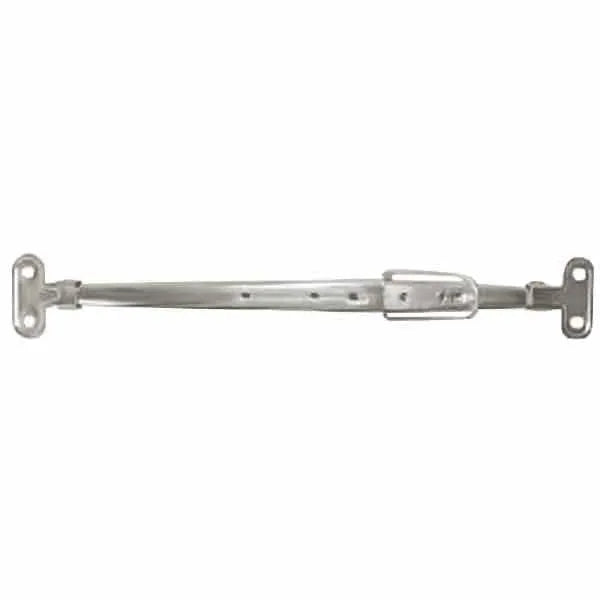

Drop Leaf Table Support

Spring tension drop leaf table supports hold drop side table leaves in place and will not release when jarred. Finger pull release makes it easy to return the table side to the downward position. Use on antique tables, tea carts, microwave carts,antique typing tables or any furniture piece with a drop down side. Unfortunately weight specifications are not available as many factors affect strength of table leaf supports. Overall size of leaf, strength of table-apron, force exerted on table leaf when extended, strength of leaf and apron material, length of screws and distance between hinge and leaf edge all contribute to strength of table leaf support.

  • Priced and sold each
  • Material: Heavy gauge steel
  • Finish: Steel
  • Spring Tension
  • Screws Included
  • 10" Open Length (rivet to rivet)
  • Drop Leaf Table Supports are a simple to used method of supporting narrow table leaves in an upright flat position. Rigid support is provided for raised leaves. This prevents leaf closing until spring-tension is released by pulling finger ring. Their many uses include tables, tea carts, microwave carts and antique typing tables. Drop Leaf Table Supports do not replace hinges but are used in conjunction with hinges.

    • Use with table hinges
    • Have a spring tension to hold table leaves in place.
    • Sturdy when jarred, should not release.
    • Easy to use finger pull release.
    • Prime heavy gauge steel

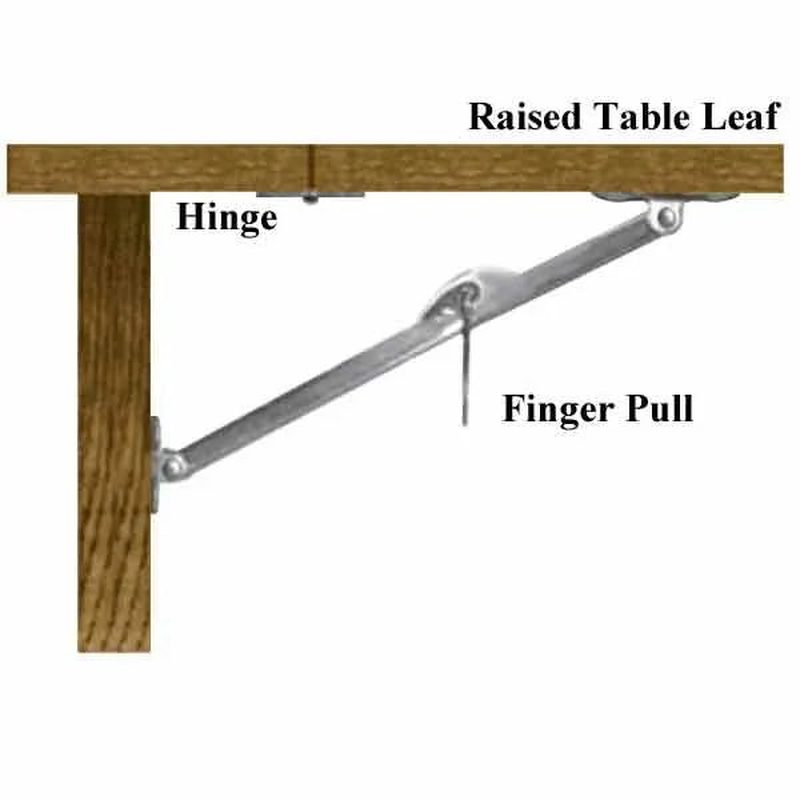

    Table Support Diagram Table Support Diagram

    Using Brass Wood Screws

    Care is required when installing brass screws. While these screws are the best match for most antique hardware however they are not as strong as steel screws. The screw is easily damaged if the hole is not properly prepared.

    The best practice is to first drill a pilot hole. Use a drill bit slightly smaller than the overall width of the screw, including threads, to drill the hole. Then use a steel screw, the same size as brass screw, to “cut threads” in pilot hole, by screwing steel screw into and then out of hole.
